---Work principle
   The rotor configured with hammers, as the main working component of Hammer Crusher , is composed of spindle, disc, pin shaft, and hammers. The rotor, being driven by motor, rotates in a high speed in the crushing cavity. The material, being fed into the crushing cavity from feeding port, are crushed, shattered, and ground under the function high speed hammers. The underside will be discharged through the screen plate which is installed at the bottom of the rotor, while the oversize will remain upon the screen plate for re-crushing and grinding, and be discharged finally.
---Features
1.Large product packing density , small iron contamination
2.High grinding efficiency, fine grinding, coarse grinding function
3.Excellent products, grain shape, a cube, very low needle flake content

4.Simple structure, convenient installation,easy maintenance, low operation cost

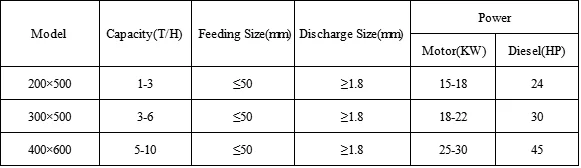

---Technical parameter

---Product pictures
