---About product

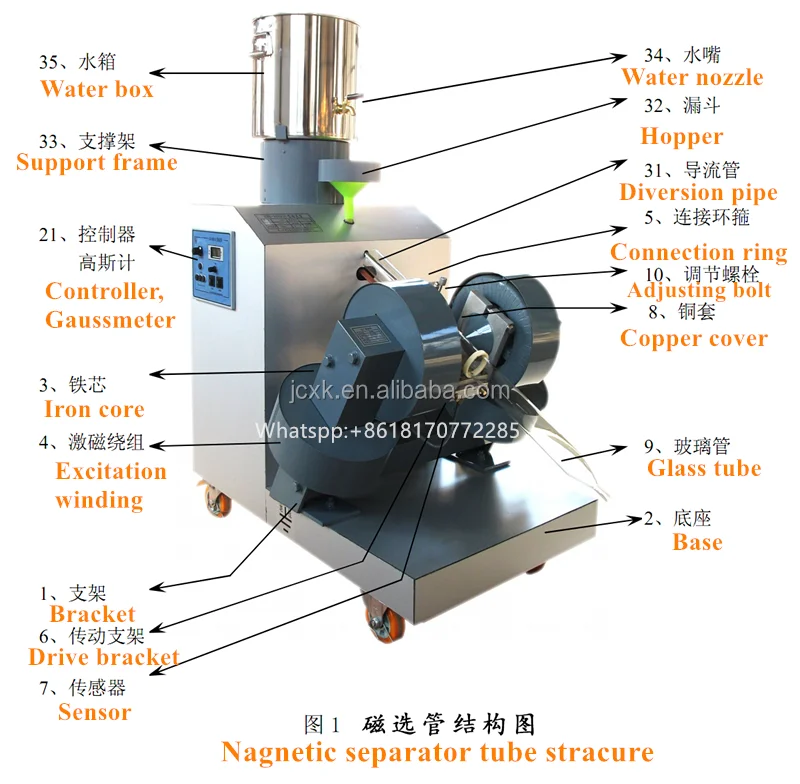

   XCGS 50 magnetic  tube lies between the two ends of electromagnet, It is equipped with glass tube to reciprocate and swing. when the sorted samples pass the magnetic field, the magnetic parts get close to the tube wall. the non magnetic parts are discharged after washed away by water during mechanical movement.

---Operation
1.Install and check the machine is in good condition
2.Prepare a 1 litre glass cup.
3.Add 20 gram mineral power with 500ml water, and small amount of alcohol, mixing it and place it at least 5 minute.
4. Set the magnetic intensity as requirement.
5. Use the clip to close the small hose, put one basin under the hose mouth, then start the machine.
6. Add water to the glass tube until the water over the magnet head about 50mm.
7. Add the mixture into the tube.
8. Open the clip, so the non-magnetic powder will go with the water, and the magnetic mineral stay in the tube.
9. Add water little by little from the top of the tube until all the non-magnetic powder go away.
10.Stop the machine and wash the magnetic mineral from the tube.

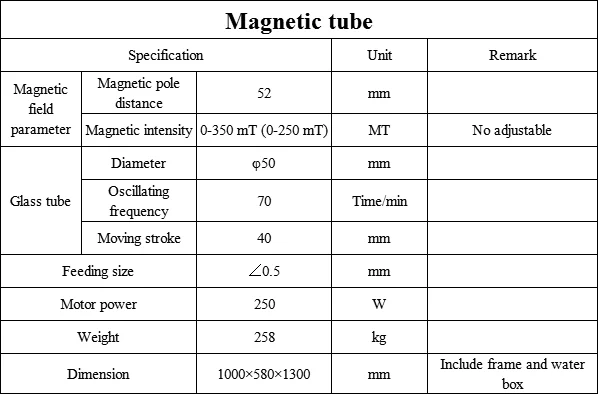

---Technical parameter

---Product pictures
